Inconel Tube Fittings

Home > Inconel > Inconel Tube Fittings

Benjamin Tubefittings is a reputable manufacturer and supplier of top-notch **Inconel Tube Fittings** located in **Abuja, Nigeria**. With a strong dedication to excellence and precision engineering, this company offers fittings that are built to endure extreme temperatures, high pressures, and corrosive environments. These Inconel fittings are highly regarded across various industrial sectors for their remarkable strength and reliability. Benjamin Tubefittings guarantees superior performance, durability, and compatibility in every product, adhering to global safety and efficiency standards. Their wide array of Inconel Tube Fittings serves industries such as oil and gas, chemical processing, marine, and aerospace applications.

Inconel Instrumentation Tube Fittings Supplier in Abuja, Inconel Double Ferrule Tube Fittings Price List in Lagos, Nickel Alloy Twin Ferrule Fittings Manufacturer in Ibadan, Inconel Single Ferrule Fittings In Kano, Inconel Bulkhead Union, Inconel Ferrule Fittings Exporter in Lagos, Inconel Instrumentation Fittings Manufacturer in Port Harcourt, Inconel Compression Tube Fittings in Abuja, Nigeria.

Inconel Tube Fittings are mainly made up of **nickel (over 70%)**, **chromium**, and **iron**, with minor additions of **molybdenum**, **niobium**, and **titanium** to boost strength and corrosion resistance. These fittings boast outstanding mechanical properties, including high tensile strength, excellent creep resistance, and superior oxidation resistance at elevated temperatures. The alloy retains its structural integrity under thermal stress and pressure, making it perfect for demanding operating environments. Inconel Tube Fittings also display impressive toughness, fatigue resistance, and long-lasting performance in both oxidizing and reducing atmospheres.

Inconel Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 6000 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Inconel Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr
Inconel Tube Fittings	0.15 max	1.00 max	0.50 max	0.015 max	0.50 max	6.00 – 10.00	72.00 min	14.00 – 17.00

Inconel Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.47 g/cm3	1413 °C (2580 °F)	655 MPa, 95000 psi	310 MPa, 45000 psi	45 %

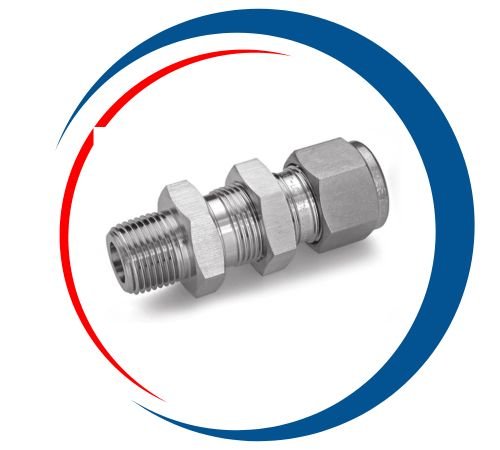

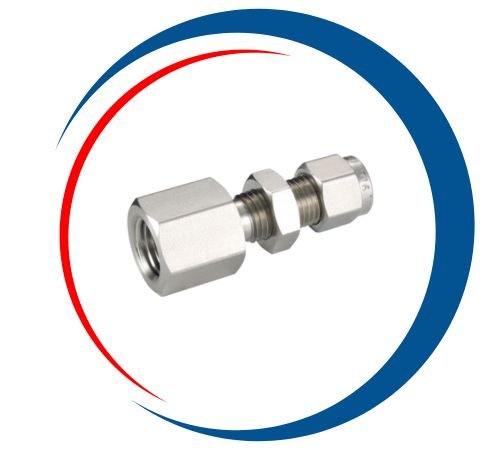

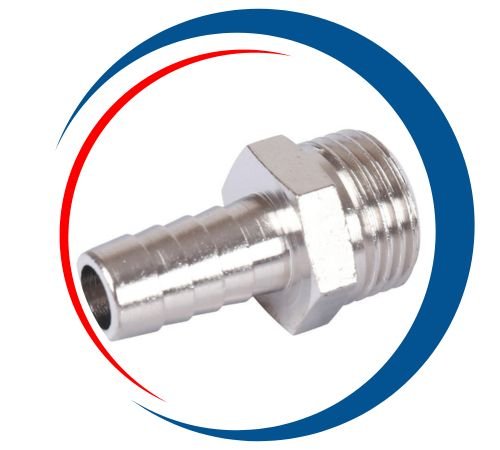

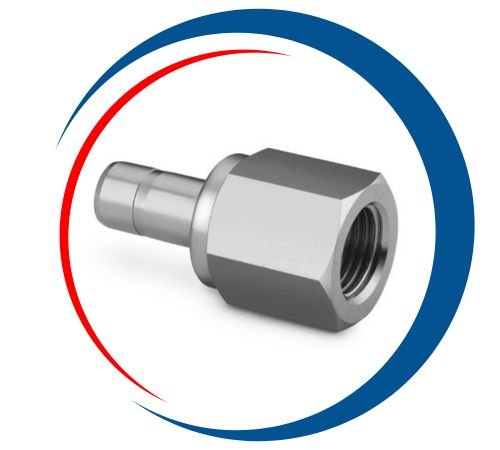

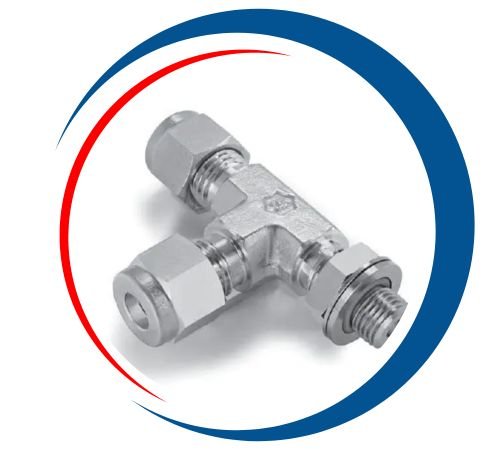

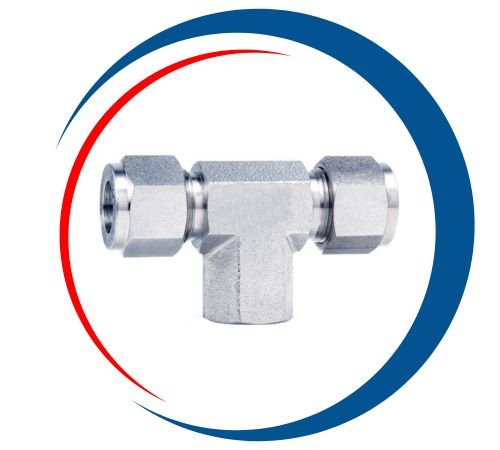

Types of Inconel Tube Fittings

Inconel Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Inconel Tube Fittings	N06600	2.4816	NC15FE11M	NiCr15Fe	NCF 600	NA 13	МНЖМц 28-2,5-1,5	ЭИ868

Inconel Bulkhead Union, Inconel Alloy Tube To Union, Inconel Instrumentation Tube Fittings Price in Abuja, Inconel Male Branch Tee Supplier in Lagos, Inconel Bulk Head Female Connector Manufacturer in Ibadan, Inconel Single Ferrule Tube Fittings Price in Kano, Inconel Male Run Tee Supplier And Manufacturer in Port Harcourt, Inconel Male Elbow In Abuja, Nigeria.

Largest Manufacturer and Supplier of Inconel Tube Fittings in Abuja, Nigeria

At Benjamin Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Inconel Tube Fittings in Abuja, Nigeria. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Nigeria, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Inconel Tube Fittings Uses

Inconel Tube Fittings find extensive use in industries that demand exceptional corrosion resistance and high-temperature performance. They are crucial in the **aerospace**, **marine**, **power generation**, **chemical processing**, and **oil and gas** sectors. These fittings are perfect for connecting pipelines that transport corrosive fluids, acids, and high-pressure gases. Inconel’s stability during thermal cycling makes it an excellent choice for **heat exchangers**, **reactors**, **turbine systems**, and **exhaust manifolds**. Moreover, their non-reactive nature ensures reliability in various applications.
