Benjamin Tubefittings, located in Abuja, Nigeria, has built a solid reputation as a top-notch manufacturer and supplier of high-quality hydraulic components, including the Hydraulic SAE Flange Ball Valve. This valve is specifically designed for high-pressure hydraulic systems, offering efficient flow control and a leak-free shutoff, even in the toughest industrial settings. Crafted from premium materials like carbon steel or stainless steel, the Hydraulic SAE Flange Ball Valve guarantees durability, resistance to corrosion, and dependable performance. Benjamin Tubefittings adheres to strict quality standards to ensure their products meet international specifications, making them perfect for industries such as oil and gas, construction, automotive, marine, and heavy machinery, where precision and safety are paramount.

Hydraulic Sae Flange Ball Valve Supplier in Abuja, SAE Flanged End Ball Valve Price List in Lagos, SS316 Ball Valves Manufacturer in Ibadan, Hexagon shape Hydraulic Sae Flange Ball Valve in Kano, Hydraulic Sae Threaded Ball Valve Exporter in Lagos, Hydraulic Sae Compression Ball Valve Manufacturer in Port Harcourt, Hydraulic Sae Flange Ball Valve In Abuja, Nigeria.

The Hydraulic SAE Flange Ball Valve is constructed from sturdy metals known for their high tensile and yield strength, outstanding wear resistance, and excellent corrosion protection. Its precision-engineered ball mechanism allows for smooth operation, requiring minimal torque, and provides a tight seal even under high-pressure conditions. The SAE flange connection ensures a secure, vibration-resistant attachment to hydraulic lines, while surface treatments like plating or passivation boost its longevity. With its robust mechanical integrity and impressive resistance to pressure and temperature, this valve is well-suited for critical hydraulic control applications.

KhpHydraulic Sae Flange Ball Valve Specification

Size Range: 1/8″ TO 2″ / 6 MM TO 50 MM
Design: Quarter Turn Type
Material: Steel / SS316
Working Pressure: 3000 PSI / 6000 PSI
Connections: SAE Flanged End, Code 61 / Code 62
Brand: TU-LOK
Applicable Medium: General Hydraulic Oil (Gas Application on request)
Temperature Range for Steel Ball Valves: -20°C to +100°C
Temperature Range for SS316 Ball Valves: -30°C to +100°C
Ball Seats: POM (POM standard option, other materials on request)
Stem and Adaptor Sealing Materials: NBR (NBR standard option, other materials on request)

Top Hydraulic Sae Flange Ball Valve Manufacturing Company in Abuja

At Benjamin Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Sae Flange Ball Valve in Abuja, Nigeria. Our advanced manufacturing facilities, strategically positioned in the Nigeria, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands

types of ball valves

Valve Type	BKH / BKHP	MKH / MKHP	KH
Diameter Size	1/8″ to 1″	1 1/4” to 2	1/2” to 3”
Working Pressure	Up to 800 Bar	Up to 420 Bar	Up to 420 Bar
Body Design	Square shape	Round / Hexagon shape	Round shape
Connection Type	Threaded Compression Flange end	Threaded Compression Flange end	Flange end

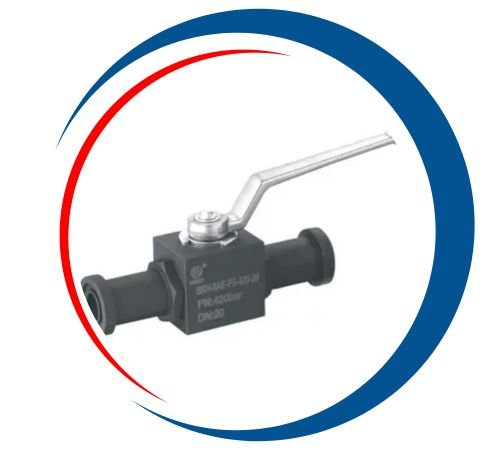

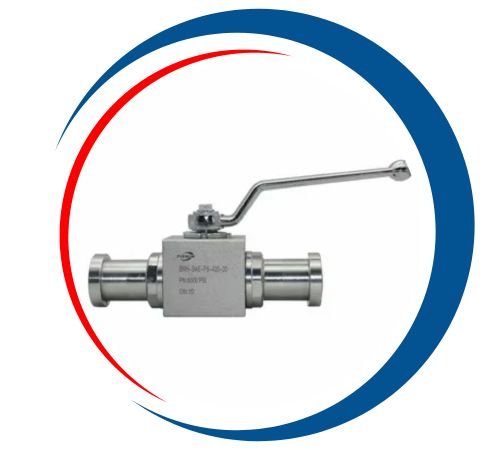

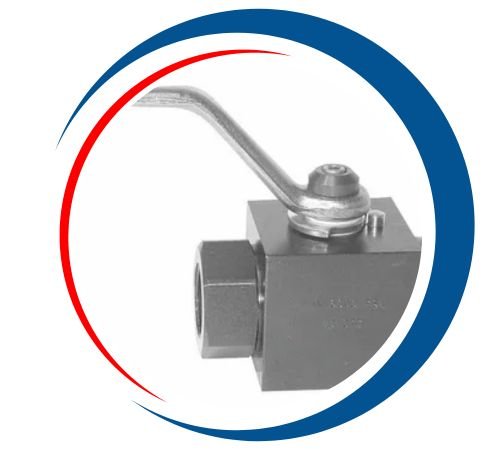

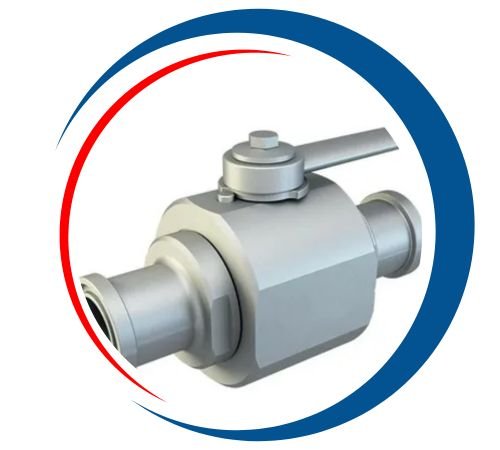

Types of Hydraulic Sae Flange Ball Valve

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Hydraulic Sae Ball Valve Supplier In Ibadan, SAE Flanged End Ball Valve Exporter In Abuja, SS316 Ball Valves Dealer In Lagos, Hydraulic Sae Hexagon shape Ball Valve Supplier in Abuja, Hydraulic Sae Threaded Ball Valve Price List in Lagos, Hydraulic Sae Compression Ball Valve Manufacturer in Ibadan, Hydraulic Sae Flange end Ball Valve in Kano, Hydraulic Sae Ball Valve Exporter in Lagos, Hydraulic SAE Flanged End Ball Valve Manufacturer in Port Harcourt, Hydraulic Sae Flange Ball Valve In Abuja, Nigeria.

Ball valve with SAE flange flow rate

Nominal Diameter (mm)	Nominal Diameter (inch)	Kv (m3/h)	Cv (gal/min)
15	1/2″	19,4	22,6
20	3/4″	45,6	53,0
25	1″	71,5	83,1
32	1 1/4″	105	122,1
40	1 1/2″	170	197,7
50	2″	275	319,8
65	2 1/2″	507	589,5
80	3″	905	1052,3
100	4″	1414	1644,2
125	5″	2362	2746,5
150	6″	3694	4295,3

Hydraulic Sae Flange Ball Valve Supplier in Abuja, Nigeria

Benjamin Tube Fittings is a leading supplier and Stockist of premium Hydraulic Sae Flange Ball Valve in Abuja, Nigeria. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the fittings industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Sae Flange Ball Valve Uses

Hydraulic SAE Flange Ball Valves are commonly used to manage or shut off fluid flow in hydraulic systems that operate under high pressure. You’ll find them in hydraulic power units, marine systems, industrial machinery, and mobile hydraulic equipment. The SAE flange design makes installation and maintenance a breeze, while the ball valve guarantees precise flow control with minimal leakage. Thanks to their exceptional durability, corrosion resistance, and ability to handle pressure, these valves are essential for ensuring safety, reliability, and operational efficiency across various hydraulic and industrial sectors.
